Info: Creating a plot file out of the SummaFlex Spooler + Visualize the cutting path in SummaFlex

Modified on Mon, 15 Oct, 2018 at 9:56 AM

The output file itself you can also check if you take the file out of the spooler (plotmanager of SummaFlex).

Double click the "plotmanager":

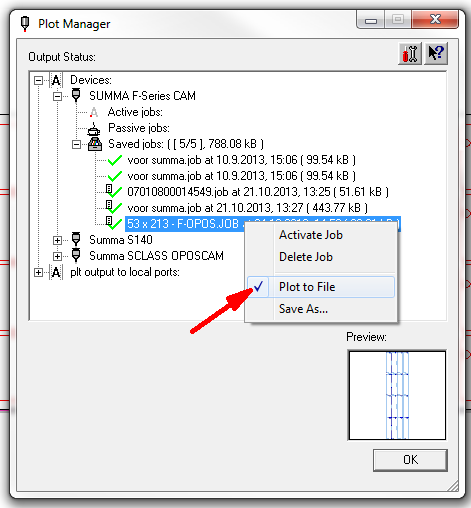

Right click on the job you want to sent to a "plot" file (*.plt) and select "Plot to File".

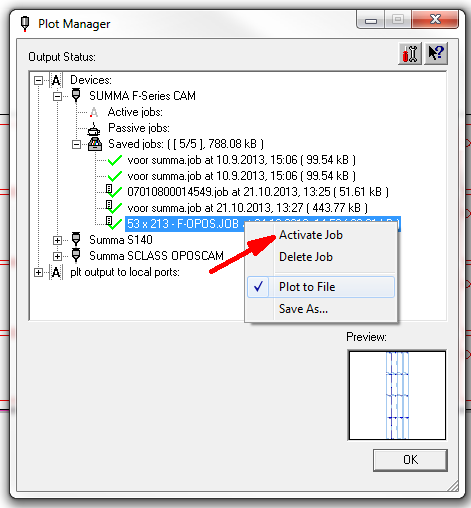

Then activate the job:

Then import the HPGL file into SummaFlex (File -> File Import...).

This import will show you the path that SummaFlex did sent to the cutter.
